Magnetic Separator
Magnetic Bead Separation Rack for 0.2 mL PCR Tube

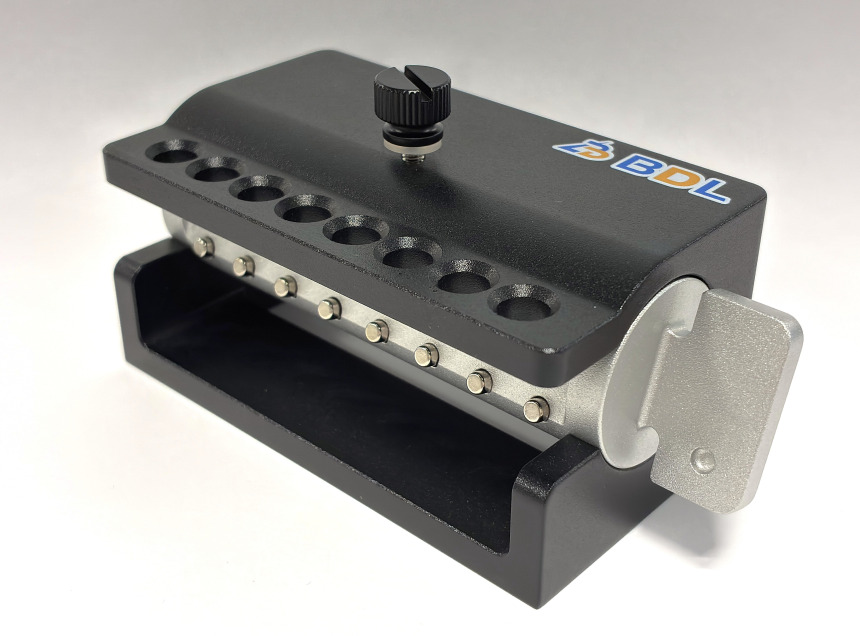

Magtrap-P <Magnetic Separator>

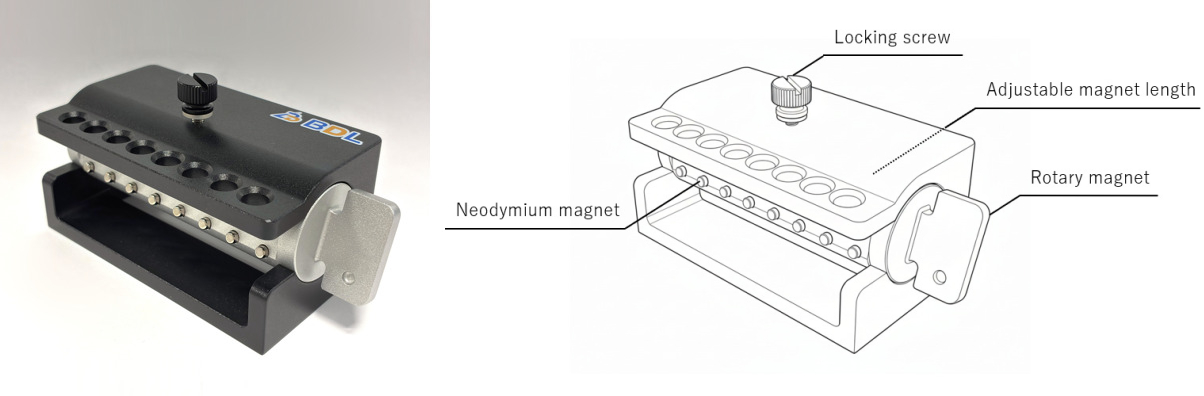

Magtrap-P is designed for magnetic bead separation from 0.2 mL individual tubes or an 8-strip PCR tube. Mechanical design allows the user to remove the tubes from the magnet for re-suspension by rotating the shaft.
Highlights
- Holds 0.2 mL individual tubes or an 8-strip PCR tube
- Strong magnets screwed into the shaft
- Magnets can be moved closer to or farther from tubes by rotating the shaft for magnetic bead collection or re-suspension
- Adjustable magnet length
- Tube hole diameter：φ6 mm
- External dimensions：82W×46D×39H mm
- Ideal for a wide range of magnetic bead–based experiments.
Purification and cleanup of DNA from PCR reactions and NGS library prep, and more.

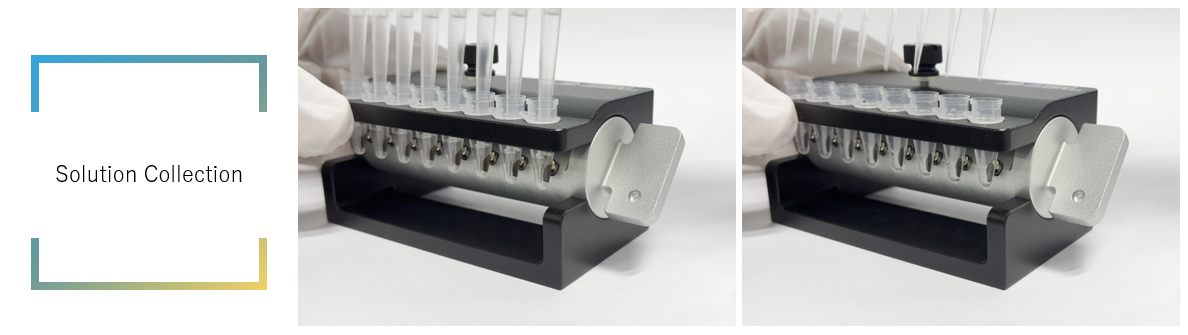

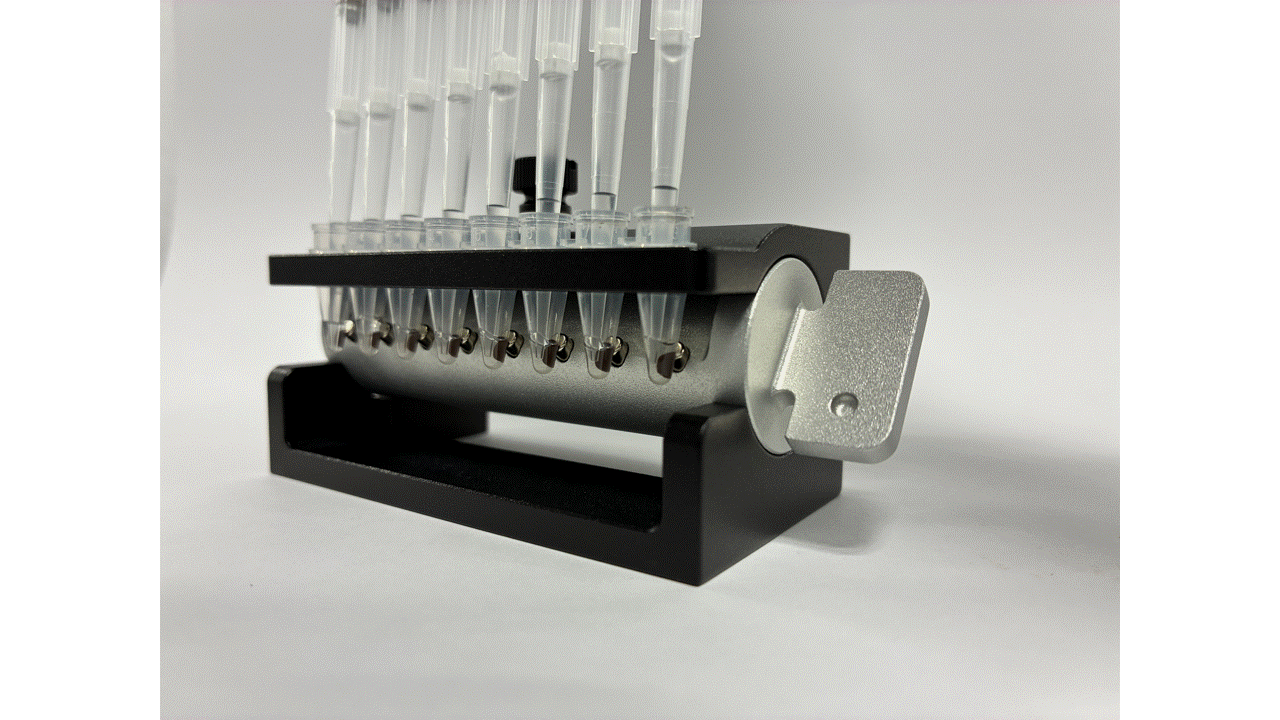

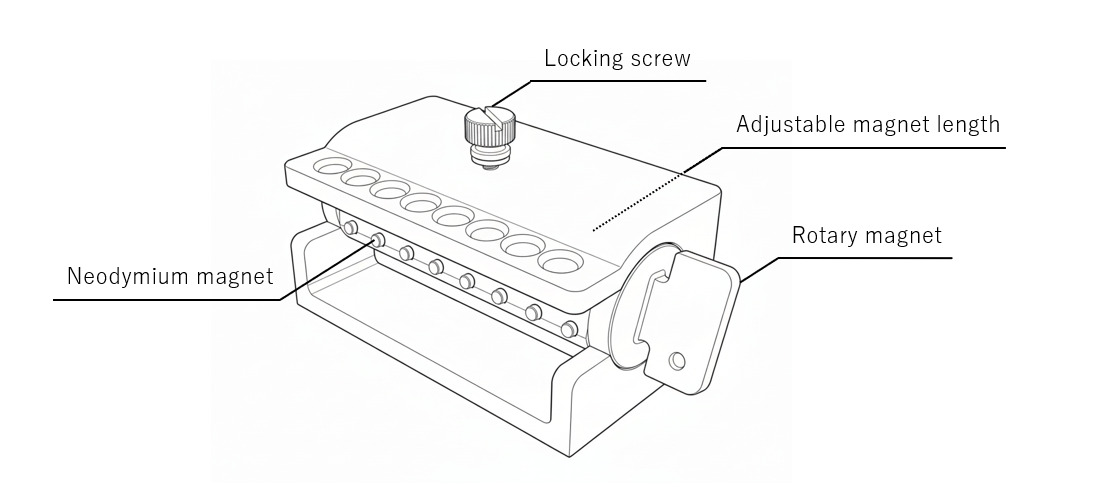

Rotary Magnet Design

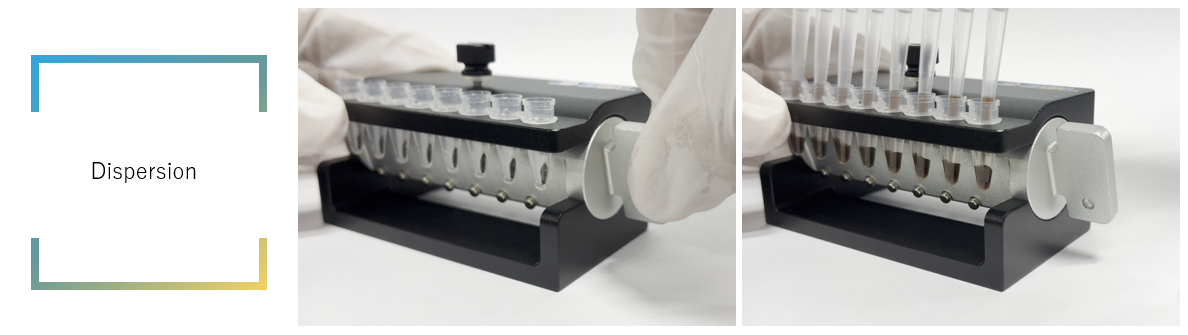

Rotary Mechanism design allows the user to remove the tubes from the magnet for re-suspension.

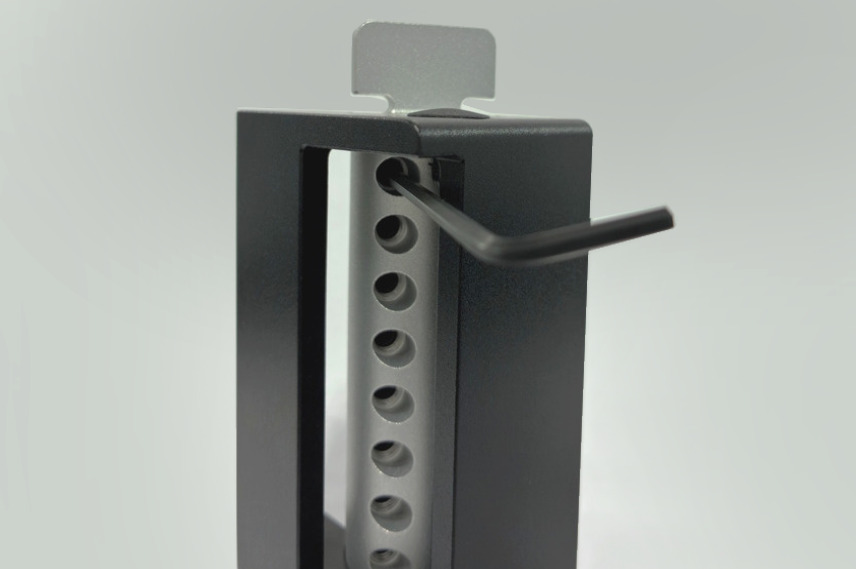

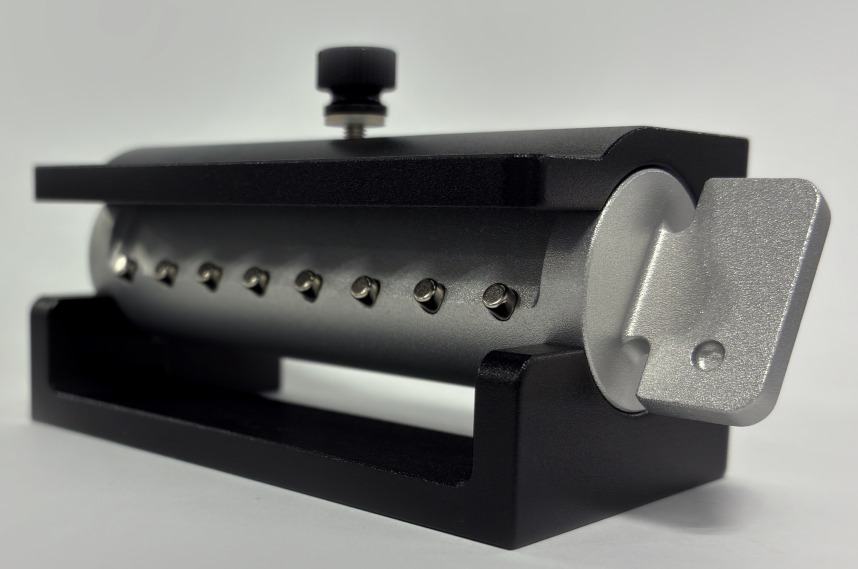

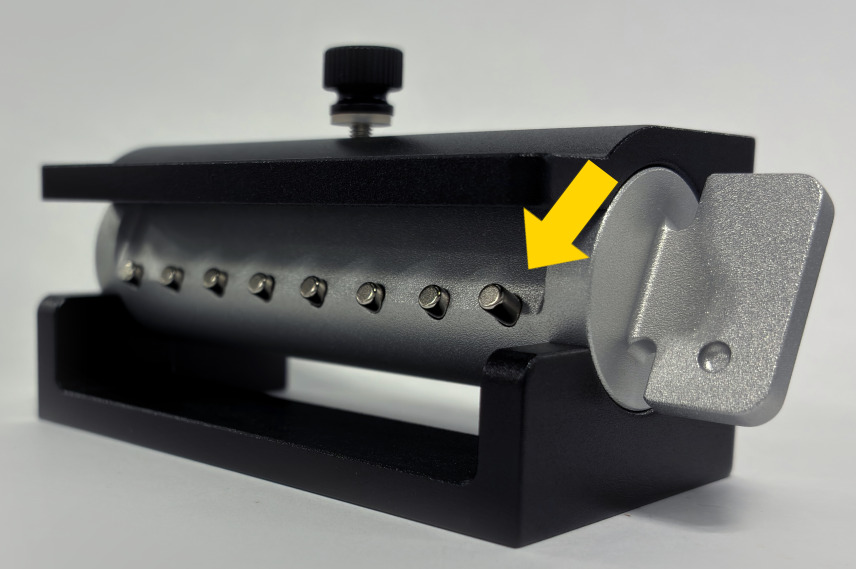

Adjustable Magnet Length
Magnet length is adjustable using allen wrench (included).
Fast Separations

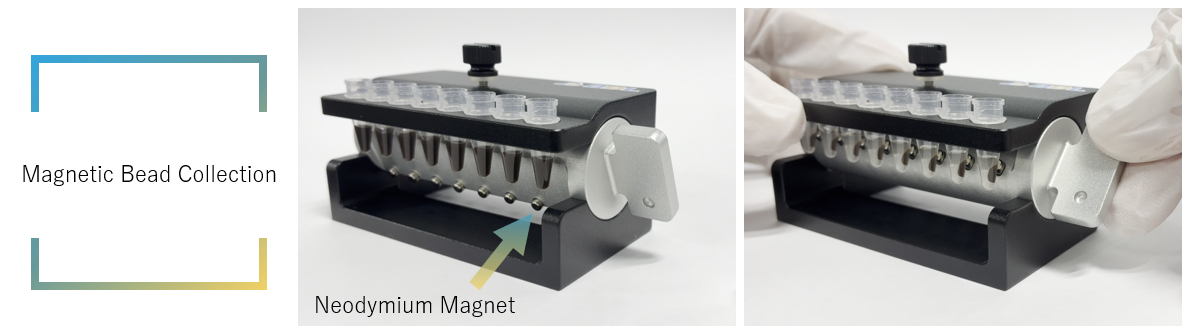

Strong Neodymium Magnets ensure fast separations of magnetic beads.
